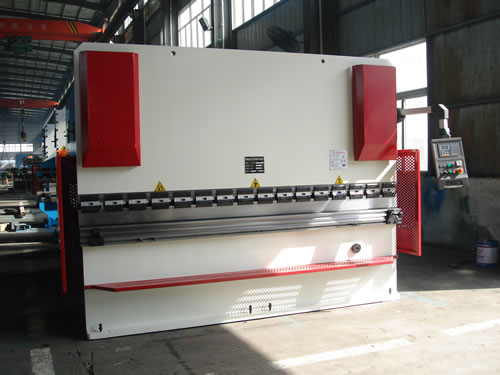

WC67K series CNC press brake

Bending Capacity:
● From 2 to 20 mm in thickness.
● From 2200mm to 12 meter in length.

Control System:
● Manual Control:
● Estun E20+ NC
● Delem DA-41, 52, 65W CNC

Jinheng-heli develops and markets a complete line of highly efficient and precise press brakes for any application, and continue to dominate the industry with high-quality craftsmanship, dependable operation and affordable prices, delivering the superior quality and indexing accuracy that have made us the industry benchmark.

We offer customized solutions that increase productivity and quality of our customer's products, there are three main control for the machines, from the conventional manual control to the Estun NC and the Delem CNC.

Parameters:

Model	Pressure（kn）	Working Table Length （mm）	Distance between Housings（mm）	Throat Depth（mm）	Stroke（mm）	Max Opening Height（mm）	Main Motor（kw）	Weight（kg）	Dimension L×W×H （mm）
40t/2200	400	2200	1850	220	100	320	5.5	2750	2200×1200×1910
40t/2500	400	2500	1850	220	100	320	5.5	3000	2500×1200×1910
63t/2500	630	2500	1900	250	120	360	5.5	4600	2500×1600×2210
63t/3200	630	3200	2600	250	120	360	5.5	5000	3200×1600×2210
80t/3000	800	3200	2600	320	120	380	7.5	5600	3200×1700×2300
80t/4000	800	, 4000	3100	320	120	380	7.5	6200	4000×1700×2400
100t/3200	1000	3200	2600	320	120	380	7.5	6400	3200×1800×2500
100t/4000	1000	4000	3100	320	120	380	7.5	7100	4000×1800×2500
125t/3200	1250	3200	2600	320	120	400	7.5	6800	3200×1850×2500
125t/4000	1250	4000	3100	320	120	400	7.5	7400	4000×1850×2500
160t/3200	1600	3200	2600	320	200	450	11	10000	3200×1900×2700
160t/4000	1600	4000	3100	320	200	450	11	11000	4000×1900×2700
160t/5000	1600	5000	4000	320	200	450	11	14000	5000×1900×3100
200t/3200	2000	3200	2600	320	200	450	18.5	11000	3200×1950×2800
200t/4000	2000	4000	3100	320	200	450	18.5	13000	4000×1950×2800
200t/5000	2000	5000	4000	320	200	450	18.5	15500	5000×1950×3000
200t/6000	2000	6000	5000	320	200	450	18.5	19000	8000×1950×3300
250t/4000	2500	4000	3100	350	250	550	18.5	20000	4000×2000×3400
250t/5000	2500	5000	4000	350	250	550	18.5	23000	5000×2000×3410
250t/6000	2500	6000	5000	350	250	550	18.5	27000	6000×2000×3100
300t/4000	3000	4000	3100	350	250	550	22	22000	4000×2000×3450
300t/5000	3000	5000	4000	350	250	550	22	25000	5000×2000×3550
300t/8000	3000	6000	5000	350	250	550	22	27000	6000×2000×3800
400t/4000	4000	4000	3100	380	250	550	37	28000	4000×2180×3800
400t/5000	4000	5000	4000	380	250	550	37	30000	5000×2180×3800
400t/6000	4000	6000	5000	380	250	550	37	37000	6000×2180×4200

As a manufacturer, we can build custom products to meet your requirements. If you are looking for something that you can not find on our site, please Contact a Product Manager or Send an Inquiry about manufacturing your custom product.
