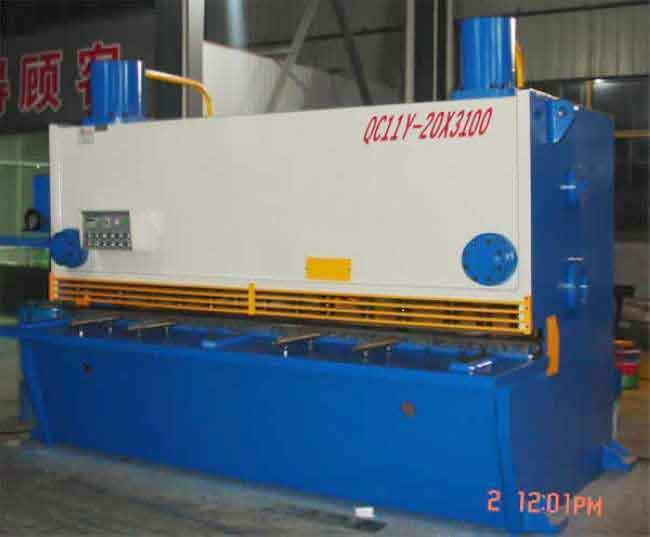

QC11Y series hydraulic guillotine shear
Date：2015-04-04 Click：1391
Introduction to the structure and properties：
■ The frame is entirely welded with steel plates, and treated to relive stress by tempering,
■ Hydraulic drive,return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.
■ It adopts three point supporting type rolling guideway to raise shearing precision.
■ Rectangle knife which has four blades has a lasting life.
■ The portable and prompt adjusment of the blades gap and the value of gap are indicated by digital,convenient and fast.
■ Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
■ Protection fence to ensure the operation safety.
■ The display devices of the backgauge value and the shearing times are on the front of the machine,
■ The shearing angle can be adjusted.
Technical Specification：
|
Model |
Cutting Thickness |
Cutting Length |
Cutting angle |
Strength |
Strokes |
Main power |
Weight(Approx.) |
|
(mm) |
(mm) |
(°) |
(KN/CM) |
(次/分) |
(kw) |
(kg) |
|
|
4×2500 |
4 |
2500 |
0.5°～2° |
≤450 |
14 |
5.5 |
3800 |
|
4×3200 |
4 |
3200 |
0.5°～1°30′ |
≤450 |
14 |
5.5 |
5000 |
|
4×4000 |
4 |
4000 |
0.5°～1°30′ |
≤450 |
12 |
5.5 |
6500 |
|
4×6000 |
4 |
6000 |
0.5°～1°30′ |
≤450 |
10 |
7.5 |
11000 |
|
6×2500 |
6 |
2500 |
0.5°～1°30′ |
≤450 |
14 |
7.5 |
5000 |
|
6×3200 |
6 |
3200 |
0.5°～1°30′ |
≤450 |
12 |
7.5 |
6000 |
|
6×4000 |
6 |
4000 |
0.5°～1°30′ |
≤450 |
10 |
7.5 |
8200 |
|
6×5000 |
6 |
5000 |
0.5°～1°30′ |
≤450 |
8 |
7.5 |
10500 |
|
6×6000 |
6 |
6000 |
0.5°～1°30′ |
≤450 |
8 |
11 |
16500 |
|
8×2500 |
8 |
2500 |
0.5°～1°30′ |
≤450 |
14 |
7.5 |
6000 |
|
8×3200 |
8 |
3200 |
0.5°～1°30′ |
≤450 |
12 |
7.5 |
7200 |
|
8×4000 |
8 |
4000 |
0.5°～1°30′ |
≤450 |
10 |
7.5 |
8800 |
|
8×5000 |
8 |
5000 |
0.5°～2° |
≤450 |
7 |
7.5 |
11500 |
|
8×6000 |
8 |
6000 |
0.5°～2° |
≤450 |
7 |
11 |
18000 |
|
10×2500 |
10 |
2500 |
0.5°～2°30′ |
≤450 |
10 |
11 |
7300 |
|
10×3200 |
10 |
3200 |
0.5°～2°30′ |
≤450 |
9 |
11 |
8000 |
|
10×4000 |
10 |
4000 |
0.5°～2°30′ |
≤450 |
8 |
11 |
12050 |
|
10×6000 |
10 |
6000 |
0.5°～2°30′ |
≤450 |
5 |
15 |
24000 |
|
12×2500 |
12 |
2500 |
0.5°～2°30′ |
≤450 |
10 |
18.5 |
9000 |
|
12×3200 |
12 |
3200 |
0.5°～2°30′ |
≤450 |
9 |
18.5 |
10800 |
|
12×4000 |
12 |
4000 |
0.5°～2°30′ |
≤450 |
8 |
18.5 |
13000 |
|
12×5000 |
12 |
5000 |
0.5°～2°30′ |
≤450 |
6 |
18.5 |
16000 |
|
12×6000 |
12 |
6000 |
0.5°～2°30′ |
≤450 |
5 |
18.5 |
29500 |
|
12×8000 |
12 |
8000 |
0.5°～2°30′ |
≤450 |
5 |
18.5 |
46500 |
|
16×2500 |
16 |
2500 |
0.5°～2°30′ |
≤450 |
9 |
18.5 |
11000 |
|
16×3200 |
16 |
3200 |
0.5°～2°30′ |
≤450 |
8 |
18.5 |
13000 |
|
16×4000 |
16 |
4000 |
0.5°～2°30′ |
≤450 |
8 |
18.5 |
16300 |
|
16×5000 |
16 |
5000 |
0.5°～3° |
≤450 |
6 |
18.5 |
20000 |
|
16×6000 |
16 |
6000 |
0.5°～3° |
≤450 |
5 |
22 |
36000 |
|
16×8000 |
16 |
8000 |
0.5°～3° |
≤450 |
5 |
22 |
75000 |
|
20×2500 |
20 | ,
2500 |
0.5°～3° |
≤450 |
8 |
22 |
15800 |
|
20×3200 |
20 |
3200 |
0.5°～3° |
≤450 |
8 |
22 |
18500 |
|
20×4000 |
20 |
4000 |
0.5°～3° |
≤450 |
5 |
22 |
21500 |
|
20×6000 |
20 |
6000 |
0.5°～3° |
≤450 |
4 |
22 |
47000 |
|
25×2500 |
25 |
2500 |
0.5°～3° |
≤450 |
8 |
37 |
19000 |
|
25×3200 |
25 |
3200 |
0.5°～3° |
≤450 |
5 |
37 |
23000 |
|
30×2500 |
30 |
2500 |
0.5°～3.5° |
≤450 |
4 |
37 |
23500 |
|
30×3200 |
30 |
3200 |
1°～3.5° |
≤450 |
4 |
40 |
26000 |
|
40×2500 |
40 |
2500 |
1°～4° |
≤450 |
3 |
75 |
38000 |
|
40×3200 |
40 |
3200 |
1°～4° |
≤450 |
3 |
90 |
49000 |
As a manufacturer, we can build custom products to meet your requirements. If you are looking for something that you can not find on our site, please Contact a Product Manager or Send
an Inquiry about manufacturing your custom product.
