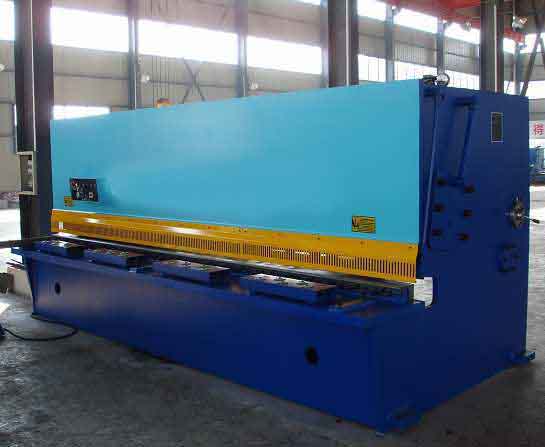

QC12Y hydraulic swing type shear

Date：2015-04-04    Click：1306

Introduction to the structure and properties：

■ This machine adopts steel plate welding structure , have high strength and good durability.
■ The frame is entirely welded with steel plates,and treated to relive stress by tempering.
■ Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
■ The portable and prompt adjusment of the blades gap and the value of gap are indicated by digital, convenient and fast.
■ Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
■ Protection fence to ensure the operation safety.
■ Digital display device for size of back gauge and shearing times available.
■ The rectangular monoblock blades featuring long life with 4 cutting edges，quality high-carbon high-chrome blades D2 quality.
■ European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.

Technical Specification：

Model	Cutting Thickness	Cutting Length	Cutting angle	Strength	Strokes	Main power	Weight(Approx.)
(mm)	(mm)	(°)	(KN/CM)	(次/分)	(kw)	(kg)
4×2500	4	2500	1°30′	≤450	10	5.5	3800
4×3200	4	3200	1°30′	≤450	10	5.5	5000
4×4000	4	4000	1°30′	≤450	8	5.5	6500
4×6000	4	6000	1°30′	≤450	5	7.5	11000
6×2500	6	2500	1°30′	≤450	10	7.5	5000
6×3200	6	3200	1°30′	≤450	9	7.5	6000
6×4000	6	4000	1°30′	≤450	8	7.5	8200
6×5000	6	5000	1°30′	≤450	6	7.5	10500
6×6000	6	6000	1°30′	≤450	5	11	16500
8×2500	8	2500	1°30′	≤450	10	7.5	6000
8×3200	8	3200	1°30′	≤450	8	7.5	7200
8×4000	8	4000	1°30′	≤450	8	7.5	8800
8×5000	8	5000	1°30′	≤450	8	7.5	11500
8×6000	8	6000	1°30′	≤450	8	11	18000
10×2500	10	2500	1°30′	≤450	9	11	7300
10×3200	10	3200	2°	≤450	9	11	8000
10×4000	10	4000	2°	≤450	8	11	12050
10×6000	10	6000	1°30′	≤450	5	15	24000
12×2500	12	2500	1°40′	≤450	9	18.5	9000
12×3200	12	3200	1°40′	≤450	9	18.5	10800
12×4000	12	4000	1°40′	≤450	8	18.5	13000
12×5000	12	5000	2°	≤450	6	18.5	16000
12×6000	12	6000	2°	≤450	5	18.5	29500
12×8000	12	8000	2°	≤450	5	18.5	46500
16×2500	16	2500	2°30′	≤450	9	18.5	11000
16×3200	16	3200	2°30′	≤450	8	18.5	13000
16×4000	16	4000	2°30′	≤450	8	18.5	16300
16×5000	16	5000	2°30′	≤450	6	18.5	20000
16×6000	16	6000	2°30′	≤450	5	22	36000
16×8000	16	8000	2°30′	≤450	5	22	75000
20×2500	20	2500	3°	≤450	8	22	15800
20×3200	20	3200	3°	≤450	8	22	18500
20×4000	20	4000	3°	≤450	5	22	21500
20×6000	20	6000	3°	≤450	4	22	47000
25×2500	25	2500	3°	≤450	8	37	19000
25×3200	25	3200	3°	≤450	5	37	23000
30×2500	30	2500	3°	≤450	4	37	23500
30×3200	30	3200	3°30′	≤450	4	40	26000
40×2500	40	2500	4°	≤450	3	75	38000
40×3200	40	3200	4°	≤450	3	90	49000
