Insulation piercing connector
Date：2015-04-04 Click：1173

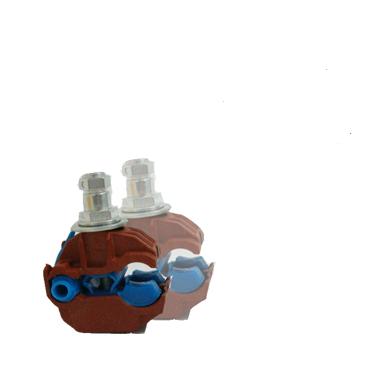

Insulation piercing connector
Red series JMA IPC used with insulated Al or Cu conductors.
Fully sealing rubber provides safe live line working.
Both main and branch conductor insulations are pierced by a single bolt action.
The shear head bolt and end cap are insulated.
Test voltage 4 kV/50 Hz/1min in water.
|
TYPE |
MAIN |
BRANCH |
WEIGHT |
PACKAGE |
|
|
CONDUCTOR mm2 |
CONDUCTOR mm2 |
kg |
pcs |
|
JMAEP |
6-95 |
1.5-10 |
0.05 |
300 |
|
JMA2-95 |
16-95 |
4-35(50) |
0.15 |
100 |
|
JMA2-150 |
50-150 |
4-35(50) |
0.18 |
100 |
|
JMA4-150 |
50-150 |
50-150 |
0.21 |
100 |
|
JMA185 |
50-185 |
50-150 |
0.35 |
40 |
|
JMA240 |
95-240 |
95-240 |
0.9 |
20 |
As a manufacturer, we can build custom products to meet your requirements. If you are looking for something that you can not find on our site, please Contact a Product Manager or Send
an Inquiry about manufacturing your custom product.
