Bi-metal Lugs & Connectors(Cu/Al)
Date：2015-04-05 Click：1146
|

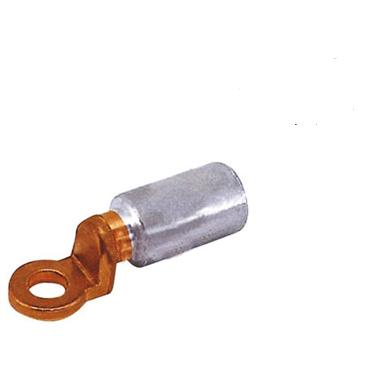

End Aluminium-Copper lugs(friction welded)
Aluminium inside covered with neutral grease for a best electrical contact, closed by a protection cap. |
|
Part No. |
Section Aluminium area(mm2) |
A(mm) |
E(mm) |
C(mm) |
B(mm) |
L(mm) |
P(mm) |
|
DTL-2 - 35 |
35 |
8 |
16 |
16.5 |
8.4 |
56 |
4.5 |
|
DTL-2 - 50 |
50 |
9 |
16 |
16.5 |
8.4 |
56 |
4.5 |
|
DTL-2 - 70 |
70 |
11 |
20 |
20 |
10.5 |
65.5 |
5 |
|
DTL-2 - 95 |
95 |
12.5 |
20 |
20 |
10.5 |
65.5 |
5 |
|
DTL-2 - 120 |
120 |
13.7 |
20 |
20 |
10.5 |
65.5 |
5 |
|
DTL-2 - 150-25 |
150 |
15.5 |
25 |
25 |
12.8 |
84 |
6 |
|
DTL-2 -150 |
150 |
15.5 |
27 |
30 |
12.8 |
84 |
6 |
|
DTL-2 - 185 |
185 |
17 |
27 |
30 |
12.8 |
84 |
6 |
|
DTL-2 - 240 |
240 |
19.5 |
27 |
30 |
12.8 |
84 |
6 |
|
DTL-2 - 300 |
300 |
24.2 |
34 |
30 |
14.6 |
98 |
7 |
As a manufacturer, we can build custom products to meet your requirements. If you are looking for something that you can not find on our site, please Contact a Product Manager or Send
an Inquiry about manufacturing your custom product.
