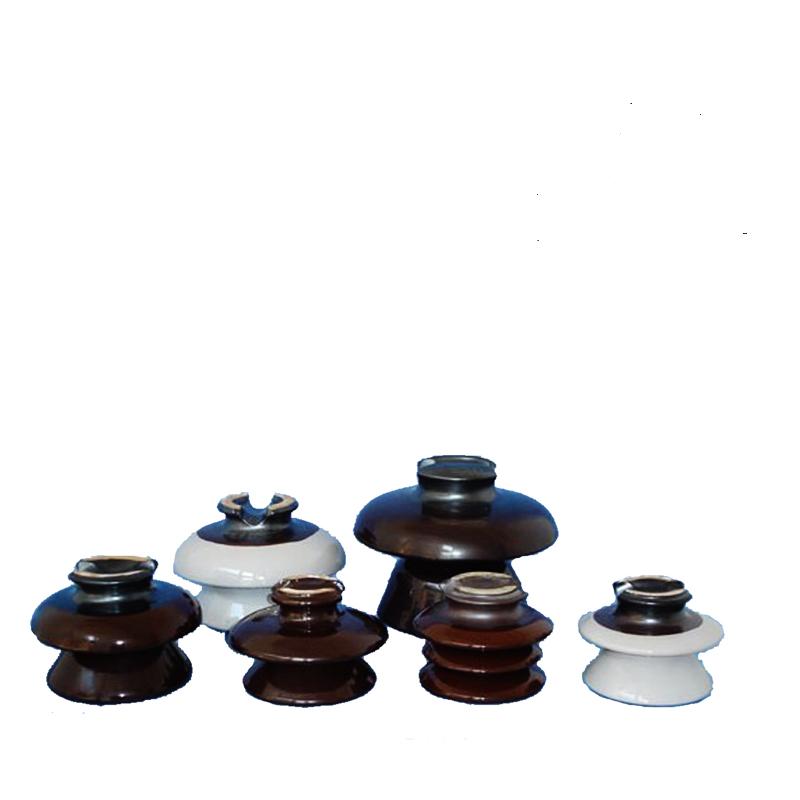

Pin Type Insulators
Date：2015-04-05 Click：877
|
Cat NO |
A1009 |
A1010 |
A1011 |
A1012 |
A1013 |
|
Fig |
1 |
1 |
2 |
2 |
3 |
|
Clsaa ANSI |
56-1 |
56-2 |
56-3 |
56-4 |
56-5 |
|
Main Dimeneions(mm) |
H |
146 |
165 |
191 |
241 |
318 |
|
h |
50.8 |
50.8 |
50.8 |
50.8 |
63.5 |
|
D |
191 |
228 |
267 |
305 |
343 |
|
d |
34.9 |
34.9 |
34.9 |
34.9 |
34.9 |
|
D1 |
19 |
19 |
19 |
19 |
19 |
|
R2 |
14 |
14 |
14 |
14 |
14 |
|
Nominal Voltange/(kv) |
23 |
23 |
35 |
46 |
69 |
|
Creepage Disance(mm) |
330 |
430 |
533 |
685 |
865 |
|
Average flashover
voltage |
Power-freauency |
Dry(kv) |
95 |
110 |
125 |
140 |
175 |
|
Wet(kv) |
60 |
70 |
80 |
95 |
125 |
|
50%
50% Impulse |
Positive(kv) |
150 |
175 |
200 |
225 |
270 |
|
Negative(kv) |
190 |
225 |
265 |
310 |
340 |
|
Radio-Influence-Voltage Data |
Test Voltage to ground(kv) |
15 |
22 |
30 |
30 |
44 |
|
Maximum RIV at 1000kHz(KV) |
100 |
100 |
200 |
200 |
200 |
|
Low-Frequency Puncture Voltage Average/kv |
130 |
145 |
165 |
186 |
225 |
|
Dry Arcing Distance (mm) |
178 |
210 |
241.3 |
285 |
356 |
|
Cantilever Failing Load (KN) |
1134 |
1360 |
1360 |
1360 |
1360 |
|
Weingt (kg) |
3.7 |
5.3 |
7 |
10.8 |
13.5 |
As a manufacturer, we can build custom products to meet your requirements. If you are looking for something that you can not find on our site, please Contact a Product Manager or Send
an Inquiry about manufacturing your custom product.
