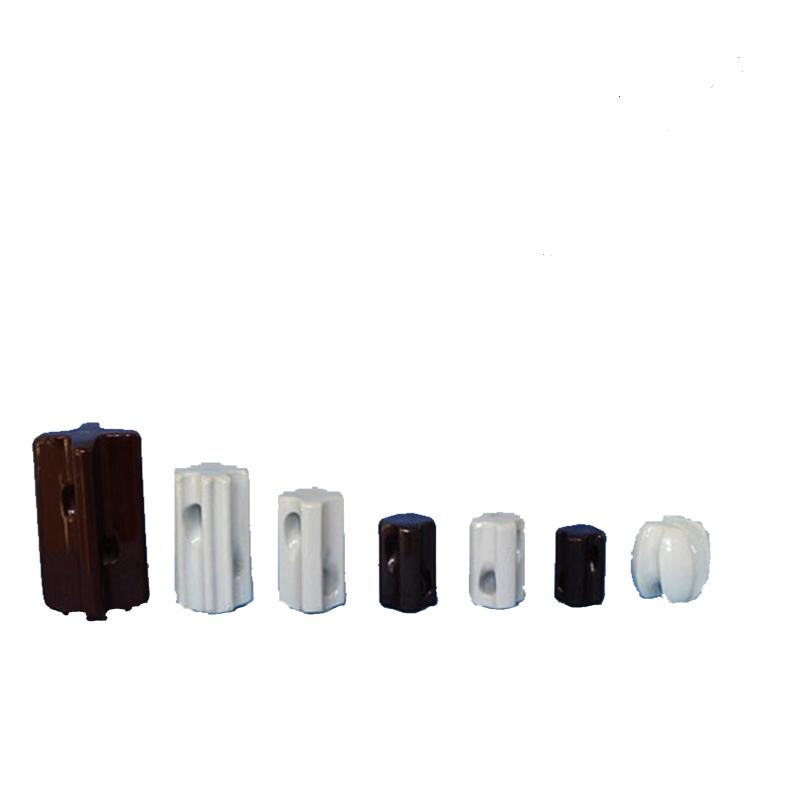

Strain Insulators
Date：2015-04-05    Click：1249

MAIN DIMENSIONS AND STANDARD PARTICULARS

Cat.No

A1052

A1053

A1054

A1055

Fig

1

1

1

2

Class ANSI

54-1

54-2

54-3

54-4



Main Dimensions

mm

H

88

108

140

171

h

44

57

79

69

h1

64

76

103

114

D

64

73

86

89

d

44

54

60

60

d1

16

22

25

25

Mechanical Failing Load(kg)

44

53

89

89

FlashoverVolgage

Power-frequenry

Dry(kv)

25

30

35

40

Wet(kv)

12

1215

18

23

Weight(kg)

0.43

0.63

1.2

2
