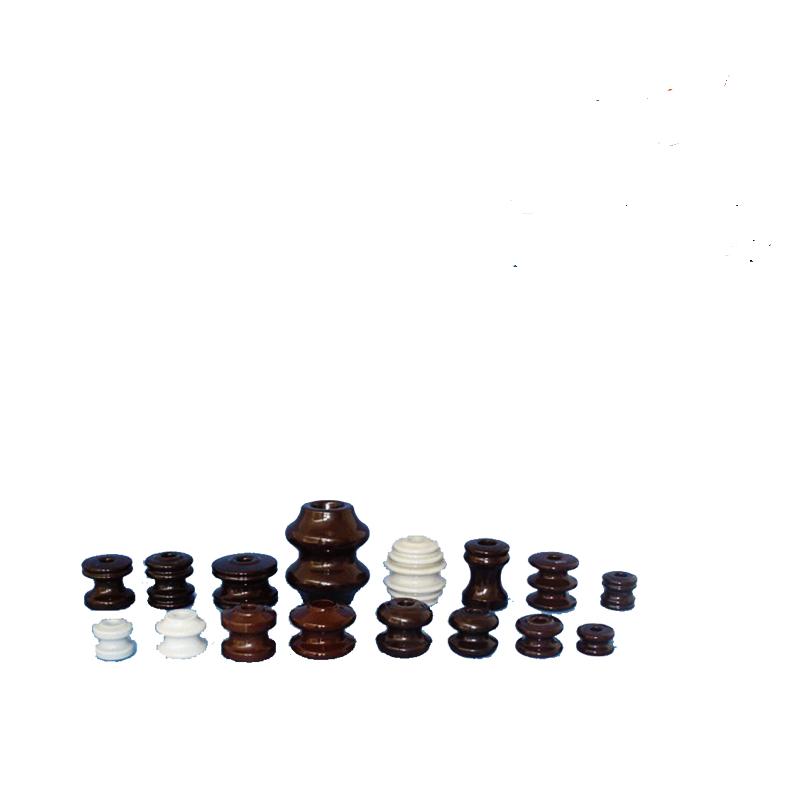

Spool Insulators
Date：2015-04-05 Click：1213
|
Cat.No |
A1076 |
A1077 |
A1078 |
A1079 |
A1080 |
|
Fig |
2 |
1 |
1 |
3 |
3 |
|
Class ANSI |
53-1 |
53-2 |
53-3 |
53-4 |
53-5 |
|
Main Dimensions
mm |
H |
54 |
76 |
40.5 |
76 |
105 |
|
h |
27 |
38 |
76 |
38 |
52.5 |
|
D |
57 |
79 |
45 |
105 |
102 |
|
d |
45 |
45 |
18 |
73 |
73 |
|
d1 |
18 |
18 |
18 |
18 |
18 |
|
d2 |
22 |
24 |
24 |
24 |
24 |
|
R |
11 |
18 |
11 |
16 |
11 |
|
Mechanical Failing Load/kg |
907 |
1360 |
1814 |
2041 |
2722 |
|
MinimumFlashoverVolgage |
Power-frequenry |
Dry(kv) |
20 |
25 |
25 |
25 |
35 |
|
Wet(kv) |
upright |
8 |
12 |
12 |
12 |
18 |
|
level |
10 |
15 |
15 |
15 |
25 |
|
Weight(kg) |
0.22 |
0.55 |
0.60 |
1.15 |
1.20 |
