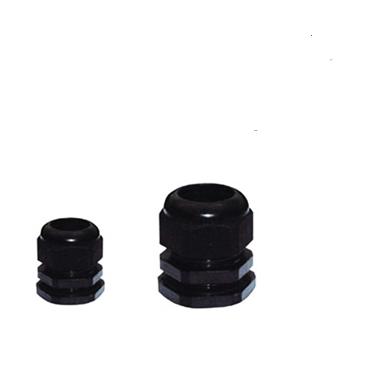

Nylon Cable Glands
Date：2015-04-05 Click：1435
Material:made from UL Nylon66,94V-2 and tight ring from tuber
Feature:
1.Special designation good strengthsile and none damage to electrical machine.
2.No need to dismetgrate the fix terminal.cable can be inserted through directly then tighten easy and save time
Application:used for machinery control box,distribution plate.machine and electri cal.etc .
|

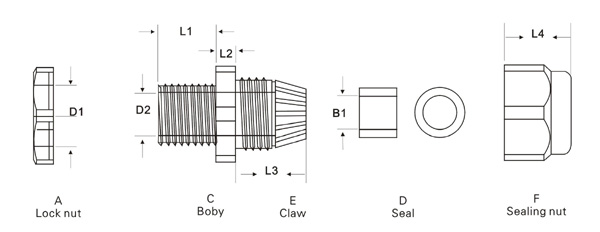

ltem No |
D1 |
D2 |
L1 |
L2 |
L3 |
L4 |
B1 |
Cabl range |
|
PG-07 |
12.0 |
8.1 |
9 |
5 |
15 |
14.0 |
6.4 |
3.5-6 |
|
PG-09 |
16.0 |
11.0 |
9 |
5 |
15 |
16.0 |
8.6 |
4-8 |
|
PG-11 |
17.9 |
13.0 |
9 |
5 |
18 |
18.0 |
10.7 |
5-10 |
|
PG-13.5 |
20.2 |
15.0 |
9 |
5 |
20 |
19.0 |
13.3 |
6-12 |
|
PG-16 |
22.0 |
17.0 |
11 |
5 |
20 |
19.0 |
14.3 |
10-14 |
|
PG-19 |
24.0 |
19.0 |
11 |
5 |
22 |
21.0 |
15.5 |
12-15 |
|
PG-21 |
26.9 |
21.8 |
11 |
6 |
24 |
22.0 |
16.7 |
13-18 |
|
PG-24 |
29.8 |
24.0 |
13 |
7 |
24 |
24.0 |
19.2 |
15-22 |
|
PG-29 |
36.0 |
28.0 |
13 |
7 |
25 |
24.0 |
24.8 |
18-25 |
|
PG-36 |
45.7 |
39.0 |
15 |
8 |
32 |
27.0 |
30.7 |
22-32 |
|
PG-42 |
54.0 |
46.0 |
15 |
8 |
33 |
29.0 |
35.6 |
30-38 |
|
PG-48 |
59.0 |
51.0 |
16 |
8 |
36 |
30.0 |
41.4 |
34-44 |
|
PG-63 |
71.0 |
63.5 |
28 |
9 |
45 |
44.0 |
55 |
42-54 |
As a manufacturer, we can build custom products to meet your requirements. If you are looking for something that you can not find on our site, please Contact a Product Manager or Send
an Inquiry about manufacturing your custom product.
